Stackable Managed Switch with 24 Ports SFP+ and 24 Ports 10GbE Copper - IT Core & AV-over-IP XSM4348S XSM4348S-100AJS XSM4348S-100AJS

M4300-24X24F (XSM4348S) armor

24x10G and 24xSFP+ Managed Switch armor

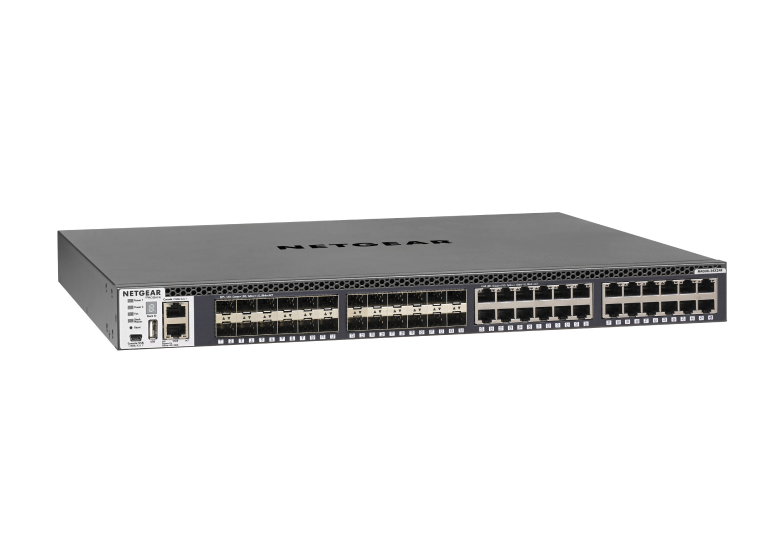

M4300-24X24F (XSM4348S)

24x10G and 24xSFP+ Managed Switch armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Delivery dates may vary based on location. See Shipping & Returns for more information.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Stackable Managed Switch with 24 Ports SFP+ and 24 Ports 10GbE Copper - IT Core & AV-over-IP

We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

High Availability (HA)

Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency

Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ Interoperability

Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency

Enables or disables ports based on link state of different ports

Advanced IPv4/IPv6 security

Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

Half-Width ToR

Combine 2 half-width models in a single rack space for redundant Top-of-Rack

Simple GUI

Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface

Flexible & Efficient

Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.

Mix & Match Stacking

Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit

Room to Grow

With PoE+ (30 watts per port), plug and play ports, and hot swap, you're ready to grow whenever you need to.

Industry Standard

SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation

Zero Touch AV-over-IP

Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)

No Delay

Non-Blocking Fabric for Near-Zero Switch Latency

NETGEAR IGMP Plus™

Prevent network flooding with effortless multicast implementation of Layer 2 Multicast

Dedicated Design

ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com

M4250 AV Line Switches

An entirely new series of switches developed and engineered for the growing AV over IP market.

Technical Specifications

M4300_24X24F_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Hardware Specifications : Model Number: XSM4348S
  • 24 Ports Copper 100M / 1G / 10G
  • 24 Ports SFP+ 1G / 10G
  • 1 Modular Bay with One (1) 250W Modular PSU included APS250W
  • 960 Gps Switching Fabric
  • Fixed Fan Front-to-Back 35.8dB
  • Management Options : Ethernet: Out-of-band 1G port (Front)
  • Console: RJ45 RS232 (Front)
  • Console: Mini-USB (Front)
  • Storage: USB (Front)
  • Single-pane-of-glass NMS300 management platform with mass-configuration support
  • Dual firmware image and configuration file for updates with minimum service interruption

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Table Sizes : 128K MAC 8k ARP / NDP
  • Up to 960 Gbps
  • Throughput up to 714 Mpps
  • Application Static Routing- 64v4 / 64v6 RIP: 512 OSPF: 512
  • Latency : <0.9µs 10g="">
  • <1.25µs 10g="">
  • IP Multicast : 1,024 IPv4 / 512 IPv6
  • Multicast IGMP Membership : 2k IPv4 / IPv6
  • M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM
  • VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools
  • Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models
  • Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)
