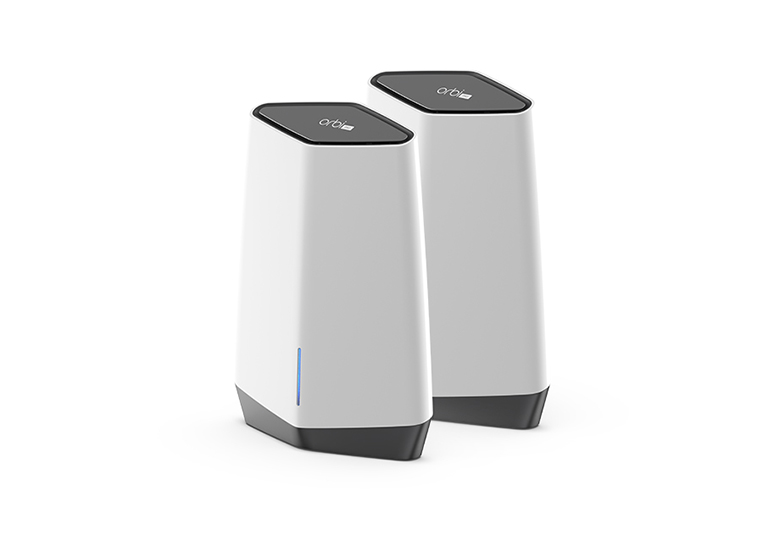

Orbi Pro WiFi 6 (SXK80)
AX6000 Tri-Band Orbi Pro WiFi 6 Mesh System
Orbi Pro WiFi 6 (SXK80)
AX6000 Tri-Band Orbi Pro WiFi 6 Mesh System
Cover up to 6,000 sq. ft. with the latest, ultimate business-grade WiFi. The Orbi Pro WiFi 6 Tri-Band AX6000 WiFi System includes 4 SSIDs linked to 4 separate VLANs, network segmentation and Business VPN to boost business and home office productivity and network performance.
MAXIMUM SECURITY
AND CONFIGURABILITY
AT WORK
SMALL BUSINESS CONTROL
Securely isolate your back-office network and critical data from the networks your guests and employees access, while optimising WiFi performance for everyone’s needs.
WORK FROM HOME CONTROL
Separate your work devices on their own network for maximum security and the performance you need for fast streaming, uninterrupted video calls and large file downloads.
UNRIVALED SECURITY WITH NETWORK SEGMENTATION
Orbi Pro is the industry's first mesh system to support IP segmentation across wired and wireless interfaces. Isolate network segments by assigning individual Ethernet ports and SSIDs across the router and all satellites to any VLAN you create.
WHITE PAPER
THE BEST
PERFORMANCE,
PERIOD
Orbi Pro’s unique shape, height and array of high-power antennas deliver longer, stronger WiFi signals and maximum speed in every corner of your home or business.
EXPANDABLE
AS YOUR
NEEDS GROW
Easily add WiFi coverage with additional
wireless satellites — each expands
coverage by 3,000 sq. ft. (sold separately).
For the correct configuration and number of satellites, consult the KB here
NETGEAR Insight Management
Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business
One-Step VPN Connectivity for your Business
Site-to-site and site-to-multisite VPN to connect the main office with branch and home offices, all through a common SSID with the NETGEAR Insight add-on service, Business VPN*
*30-day trial included with the purchase of an Orbi Pro. One Orbi Pro router is required in the main office, and one additional Orbi Pro router required in each branch or home office.
Technical Specifications
- Orbi Pro WiFi 6 Router (SXR80) : Dimensions6.8 x 3.3 x 9.7 in, Weight 2.06lb
- Orbi Pro WiFi 6 Satellite (SXR80) : Dimensions6.8 x 3.3 x 9.7 in, Weight 2.06lb each
- What do I need for Orbi Pro WiFi 6 to work? : 1. High-speed Internet connection 2. Connect to existing modem or gateway 3. Use the local UI to set up and customize in minutes
- WiFI Technology : (2,400 + 2,400 + 1,200) Mbps†, Simultaneous Tri-band WiFi
- Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
- Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Antennas : Eight (8) high-performance antennas with high-power amplifiers
- MU-MIMO : OFDMA and bi-directional MU-MIMO WiFi 6 throughput. MU-MIMO capable for simultaneous data streaming on multiple devices
- TWT : TWT (Target Wait Time) for longer smartphone battery life
- Beamforming : Implicit/Explicit Beamforming for 2.4GHz and 5GHz bands
- Link Aggregation Grouping : Local Area Network Ports for Router Unit 4x GbE, of which two can be formed in a LAG. Local Area Network Ports for Satellite Unit 1x 2.5GbE; 4x GbE, of which two can be formed in a LAG
- Ports – Orbi Pro WiFI 6 Router : One (1) Gigabit or 2.5 Gigabit Ethernet WAN or LAN port. Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional. Two (2) Gigabit Ethernet LAN ports
- Security : Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices). Flexible VLAN configuration on all four (4) SSID WiFi networks. Client isolation by default on Guest SSID and configurable on other SSIDs. WPA/WPA2/WPA3 support.
- Local Admin : Local Admin UI available for extensive feature setting and maintenance
- Insight : Insight App - Secured Cloud for remote monitoring
Third party support : Domotz
- Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
- ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
- PMP0332-10000S
- PMP0352-10000S
- Insight : 1-year subscription included
- Support
- 90-day complimentary technical support1 www.NETGEAR.com/support
- SXK80 Router + 1x Satellite
- SXK80B3 Router + 2x Satellite
- SXK80B4 Router + 3x Satellite
- SXS80 Satellite only
- One (1) Orbi Pro WiFi 6 Router (SXR80)
- One (1) Orbi Pro WiFi 6 Satellite (SXS80)
- Two (2) wall mounts with screws
- One (1) 2m Ethernet cable
- Two (2) 12V/3.5A power adapters
- Installation guide
High Resolution Image
Data Sheet (PDF)
- Orbi Pro WiFi 6 Router (SXR80) : Dimensions6.8 x 3.3 x 9.7 in, Weight 2.06lb
- Orbi Pro WiFi 6 Satellite (SXR80) : Dimensions6.8 x 3.3 x 9.7 in, Weight 2.06lb each
- WiFI Technology : (2,400 + 2,400 + 1,200) Mbps†, Simultaneous Tri-band WiFi
- Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
- Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Antennas : Eight (8) high-performance antennas with high-power amplifiers
- Beamforming : Implicit/Explicit Beamforming for 2.4GHz and 5GHz bands
- Link Aggregation Grouping : Local Area Network Ports for Router Unit 4x GbE, of which two can be formed in a LAG. Local Area Network Ports for Satellite Unit 1x 2.5GbE; 4x GbE, of which two can be formed in a LAG
- Ports – Orbi Pro WiFi 6 Satellite : One (1) Gigabit or 2.5 Gigabit Ethernet LAN port. Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional. Two (2) Gigabit Ethernet LAN ports
- Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
- ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
- PMP0332-10000S
- PMP0352-10000S
- Insight : 1-year subscription included
- Support
- 90-day complimentary technical support1 www.NETGEAR.com/support
- SXK80 Router + 1x Satellite
- SXK80B3 Router + 2x Satellite
- SXK80B4 Router + 3x Satellite
- SXS80 Satellite only
- One (1) Orbi Pro WiFi 6 Router (SXR80)
- One (1) Orbi Pro WiFi 6 Satellite (SXS80)
- Two (2) wall mounts with screws
- One (1) 2m Ethernet cable
- Two (2) 12V/3.5A power adapters
- Installation guide
Orbi Pro Family Comparison
SXK30 Orbi Pro WiFi 6 Mini |
SXK80 Orbi Pro WiFi 6 |
SRK60 Orbi Pro |
|
|---|---|---|---|
|
WiFi Speed |
WiFi Speed WiFi 6 – AX1800 (Up to 1.8 Gbps) |
WiFi Speed WiFi 6 - AX6000 (Up to 6.0 Gbps) |
WiFi Speed WiFi 5 - AC3000 (Up to 3.0 Gbps) |
|
WiFi Configuration |
WiFi Configuration Dual-Band |
WiFi Configuration Tri-Band |
WiFi Configuration Tri-Band |
|
Physical Specifications |
Physical Specifications Dimensions: 5.8 x 2.7 x 7.4in, Weight: 1.06lb |
Physical Specifications Dimensions: 6.8 x 3.3 x 9.7 in, Weight 2.06lb |
Physical Specifications Dimensions : 6.8 x 3.3 x 9.7in, Weight : 2.06lb |
|
# of Concurrent Users |
# of Concurrent Users 40 |
# of Concurrent Users 80 |
# of Concurrent Users 40 |
|
Ideal Use |
Ideal Use Small Business and SOHO |
Ideal Use SOHO and Small Business |
Ideal Use SOHO |
|
WiFi Coverage |
WiFi Coverage Up to 4,000 sq. ft. |
WiFi Coverage Up to 6,000 sq. ft. |
WiFi Coverage Up to 5,000 sq. ft. |
|
Dedicated Wireless Backhaul |
Dedicated Wireless Backhaul No |
Dedicated Wireless Backhaul Yes |
Dedicated Wireless Backhaul Yes |
|
Multi-Gig Port 2.5 |
Multi-Gig Port 2.5 No |
Multi-Gig Port 2.5 Yes |
Multi-Gig Port 2.5 No |
|
Integrated Plus Switch with VLANs |
Integrated Plus Switch with VLANs Yes |
Integrated Plus Switch with VLANs Yes |
Integrated Plus Switch with VLANs No |
|
Remote Management |
Remote Management Insight Remote Management |
Remote Management Insight Remote Management |
Remote Management Insight Remote Management |
