Cloud Managed WiFi (WAC505)
AC1200 Dual Band PoE Insight Managed Smart Cloud Wireless Access Point
Cloud Managed WiFi (WAC505)
AC1200 Dual Band PoE Insight Managed Smart Cloud Wireless Access Point
1-Year Insight subscription included Simple setup with NETGEAR Insight, no additional hardware needed Multi-gigabit WiFi throughput (up to 1.2 Gbps) with Gigabit Ethernet port 802.3af Power over Ethernet 8.9W.
Gestion NETGEAR Insight
Un contrôle simple et puissant de votre réseau à tout moment et en tout lieu sur plusieurs sites. NETGEAR Insight gère votre réseau pour vous permettre de vous concentrer sur la gestion de votre entreprise
Reliable Speeds
(MU-MIMO) ensures network performance in high density deployments. 2x2 Dual Band 802.11ac Wave 2.
Ease of Deployment
Power over Ethernet (PoE) for simplicity and flexibility.
Monitor From Anywhere
User-friendly remote cloud management with the Insight app.
Flexible Mounting
Wall and Ceiling kit included.
Features
PERFORMANCE
Business class WiFi Wave2 2x2 with 2 streams of data (2.4Ghz and 5Ghz) for an aggregate throughput of up to 1.3Gbps
MULTIPLE DEVICE PERFORMANCE
Dual-Band AC1300 speed, coupled with MU-MIMO technology, supports up to 200 client devices
POE POWERED
1 Gigabit PoE Port (WAN) 9.3 Watts - Optional 12V Power Adaptor PAV12V Sold Separately
BUSINESS CLASS SECURITY
Supports WPA, WPA2, and rogue AP detection
FLEXIBLE MOUNTING
Easy to securely install on the wall or a suspended ceiling with included hardware
LOCAL AND REMOTE MANAGEMENT
Includes 1-Year Insight subscription for remote management from anywhere, and no additional hardware or cloud key required. Setup, configure, and manage with the Insight app
ADVANCED TECHNOLOGY
Supports load balancing, band steering, and assisted roaming
Technical Specifications
- Warranty: : This product is backed by a NETGEAR 5-year Hardware Warranty.
- Support: : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts., ProSUPPORT 24x7 Advanced Technical Support via chat for 90 days.
- Support
- Wireless Feature: : IEEE 802.11ac Wave 2 Wifi 5 (2x2) /802.11ac. (2x2)1.3Gbps AC1300 Dual-Band Radios:2.4GHz (400Mbps), 5GHz (866Mbps). Client Load Balancing via Rx RSSI & Client threshold.
- Max clients : Up to 200 wireless clients. Full MU-MIMO support.
- Hardware Features: : Stand-alone or remote cloud managed options, no additional cloud-keys or hardware requried1 year Insight Management Included. Powered by PoE 9.3W IEEE 802.3at or optional AC/DC Power Adapter Includes Ceiling / Wall mount Kit.
- Frequency Band: : 2.4GHz and 5GHz
- Multi-User MIMO: : Yes
- Maximum Theoretical Throughput: : 300 Mbps (2.4Ghz). 867 Mbps (5GHz). Up to 1.2 Gbps
- SNMP: : v1, v2c
- Deployment options: : Standalone. NETGEAR Insight management solution
- Security: : WiFi Protected Access (WPA, WPA2). MAC Address authentication. WPA2 Enterprise supported (802.1x). Wireless access control to identify
- Default Reset: : Yes
- MAC ACL: : Yes
- Routing Function: : No
- 802.11AC Wave: : Wave 2
- Simultaneous Bridge/Client Association: : Yes
- VLAN Support: : Yes
- Bandwidth Management: : Yes
- Bonjour Gateway: : No
- Link Layer Discovery Protocol: : Yes
- Product Ordering Information: : WAC505-10000S, WAC505-100NAS. WAC505PA-100NAS. WAC505B03-10000S, WAC505-100NAS

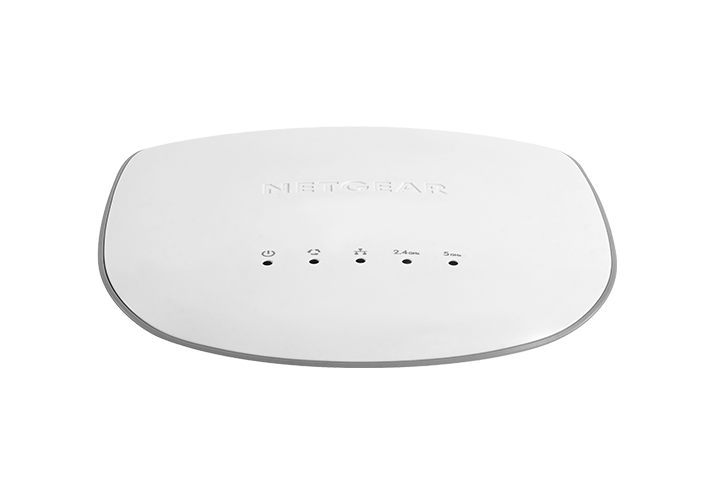

High Resolution Image
