RBK764

Upgrade to blazing-fast 5.4Gbps† of mesh WiFi 6 on up to 75 devices simultaneously across more space: 7 rooms or up to 10,000 sq. ft. Protected by award-winning NETGEAR security services, the RBK764 includes a dedicated connection for instant router-satellite communication and 9 Gigabit ports to give your most demanding tech products their own wired connection.

 RBK764-100NET RBK764-100NET
NETGEAR.com exclusif

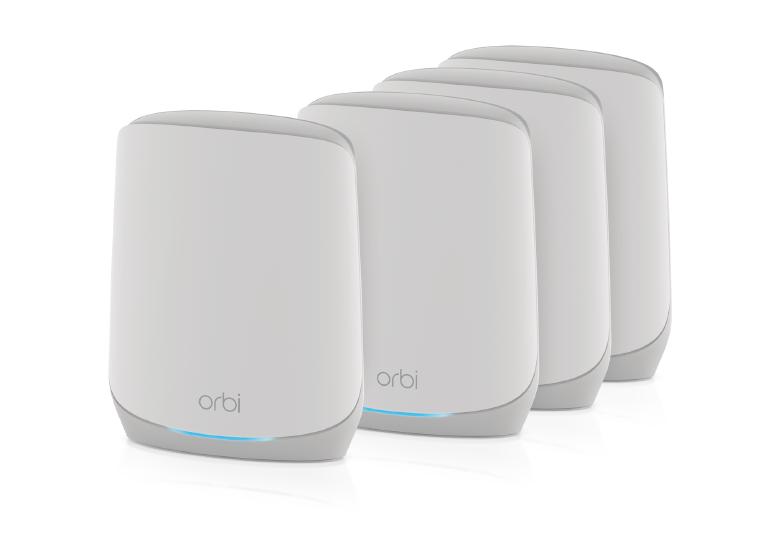

Orbi 760 Series Tri-band WiFi 6 Mesh System, 5.4Gbps, Router + 3 Satellites

Upgrade to blazing-fast 5.4Gbps† of mesh WiFi 6 on up to 75 devices simultaneously across more space: 7 rooms or up to 10,000 sq. ft. Protected by award-winning NETGEAR security services, the RBK764 includes a dedicated connection for instant router-satellite communication and 9 Gigabit ports to give your most demanding tech products their own wired connection.

NETGEAR.com exclusif

Orbi 760 Series Tri-band WiFi 6 Mesh System, 5.4Gbps, Router + 3 Satellites

Livrable le : Expédié à partir du :

Livraison et retour gratuits

Livrable le : Expédié à partir du :

Rejoindre la liste d'attente

Informez-moi lorsque le produit sera de nouveau en stock

Saisissez une adresse électronique valide.

Vous êtes déjà sur la liste. Nous vous en informerons sous peu.

Merci, nous resterons en contact.

Upgrade to blazing-fast 5.4Gbps† of mesh WiFi 6 on up to 75 devices simultaneously across more space: 7 rooms or up to 10,000 sq. ft. Protected by award-winning NETGEAR security services, the RBK764 includes a dedicated connection for instant router-satellite communication and 9 Gigabit ports to give your most demanding tech products their own wired connection.

4 Pack: 10,000 sq. ft. + 30 Days NETGEAR Armor

3 Pack: 7,500 sq.ft

Satellite complémentaire (RBS760) - Jusqu'à 175 m² supp

Système Mesh Orbi WiFi 6 AX5400 (RBK762S) - Jusqu'à 350 m²

Pourquoi acheter directement auprès de NETGEAR ?

Truck_White

GRATUIT
EXPÉDITION

Exclusive_Offers_Icon_White

EXCLUSIF
OFFRES

pre-purchase-concierge-live-chat

PRÉ-COMMANDE
DISCUTEZ AVEC NOS EXPERTS

Box_White

SANS SOUCI
Retours

ORBI FAMILY
COMPARISON

760 Series
WiFi: WiFi 6
Speed: up to 5.4Gbps
Devices: up to 75
Coverage: up to 12,500 sq.ft.

SHOP 760 SERIES

850 Series
WiFi: WiFi 6
Speed: up to 6Gbps
Devices: up to 100
Coverage: up to 17,500 sq.ft.

SHOP 850 SERIES

960 Series
WiFi: WiFi 6E
Speed: up to 10.8Gbps
Devices: up to 200
Coverage: up to 21,000 sq.ft.

SHOP 960 SERIES

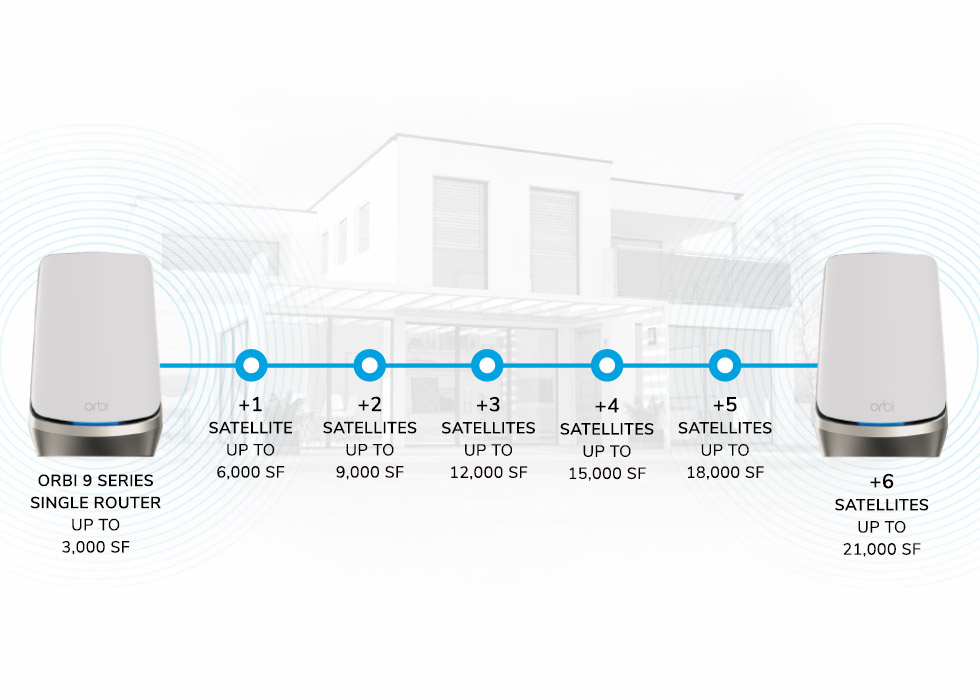

How many satellites do you need?


Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider to ensure you have the right Orbi kit for your home. You can always add more in the future, as your needs grow.
Common-module-spc-iphone

Common Module Orbi

Considérations relatives au positionnement des satellites

Il est essentiel d'avoir le bon nombre de satellites pour obtenir une couverture optimale sur l'ensemble de votre propriété. Voici quelques points à considérer.

La couverture est-elle uniquement destinée à la maison ou doit-elle s'étendre aux zones extérieures et aux bâtiments isolés ? Le fait de placer le satellite Orbi près des portes ou des fenêtres peut améliorer la couverture extérieure.
En fonction de la conception de votre maison, vous pouvez avoir besoin de satellites supplémentaires pour étendre le WiFi dans le moindre recoin de votre habitation.
Assurez-vous que le routeur et les satellites sont placés à portée l'un de l'autre afin que les unités puissent communiquer entre elles. L'application Orbi vous aidera à vous assurer que tous les satellites sont bien disposés.
Les routeurs et satellites Orbi sont dotés de plusieurs ports Ethernet, ce qui vous permet d'établir des connexions filaires là où vous en avez besoin (dans votre bureau, votre salon ou votre salle dédiée au multimédia).
Des matériaux plus épais comme la brique ou le béton peuvent affaiblir les signaux WiFi. Envisagez d'installer d'autres satellites ou de changer leurs positionnements pour bénéficier d'une couverture WiFi plus solide.

ENGINEERED FOR
BLAZING FAST WIFI


Orbi is engineered for more efficient data transmission through our exclusive Tri-Band technology. The result is faster WiFi performance that doesn't degrade across the house.

UNSTOPPABLE
STREAMING


Orbi keeps everyone in your house streaming Netflix shows, video calls, and gaming, all at the same time with no buffering or drop offs.


THE BEST COVERAGE.

PERIOD.



Orbi’s unique shape and height encase ultra-premium, high-power components to deliver significantly better coverage and overall performance than the competition.

RBK763S-P4-Mobile

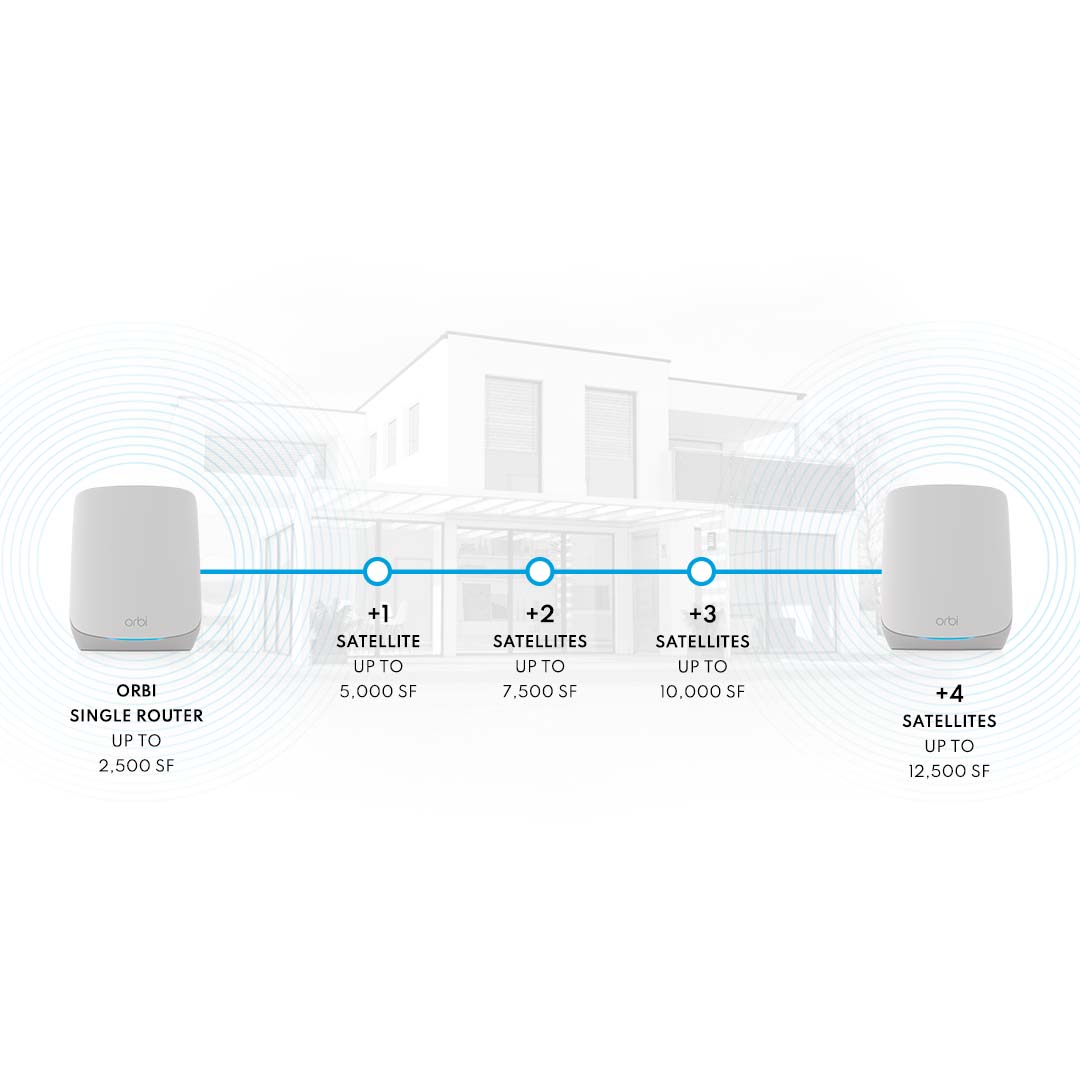

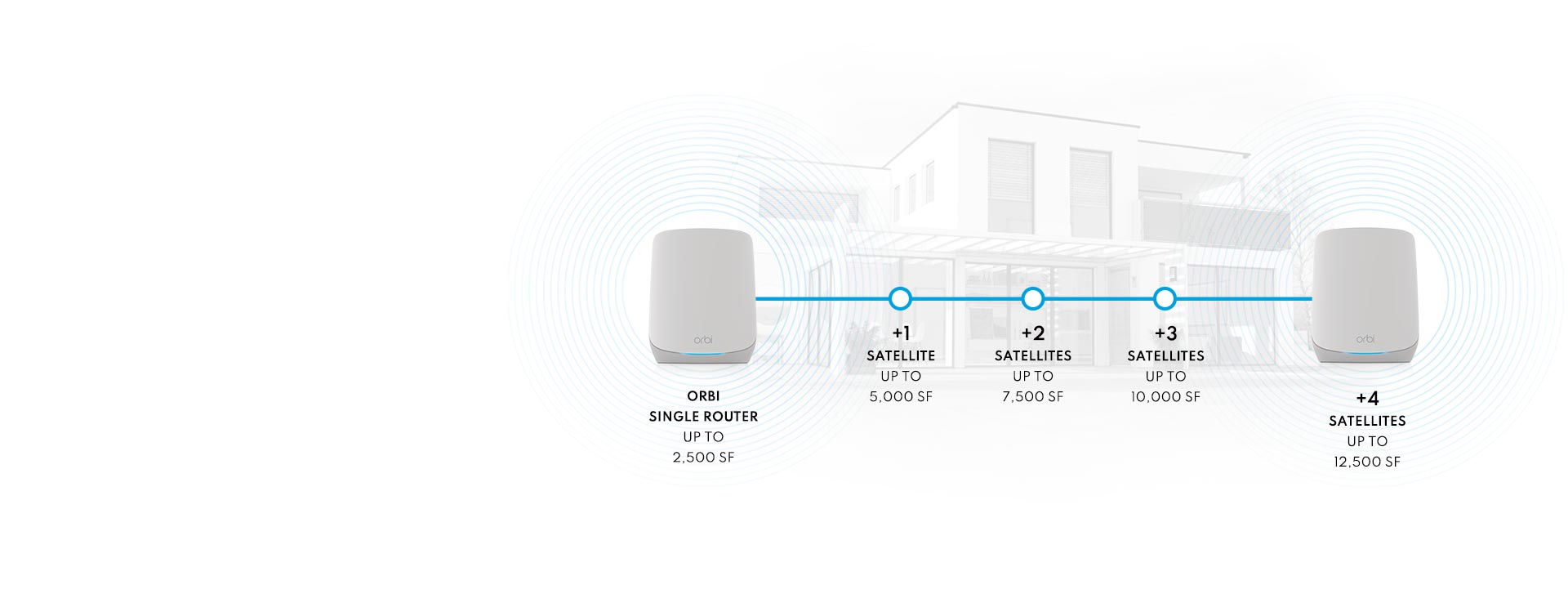

ADD SATELLITES TO
MEET YOUR NEEDS


Easily add WiFi coverage with additional
wireless satellites — to expand
coverage by 2,500 sq. ft. (sold separately).

Netgear Armor Netgear Armor

Netgear Armor

SÉCURITÉ INTERNET TOUT-EN-UN

Vous ne laisseriez pas votre porte ouverte durant la nuit. Faites-en de même avec votre réseau WiFi. NETGEAR Armor protège votre famille et vos périphériques grâce à un bouclier de protection automatique pour votre réseau afin d'empêcher le piratage, le vol de mots de passe, les ransomware et les attaques.

EN SAVOIR PLUS VOIR LA VIDEO
NETGEAR Smart Parental Controls

LES ENFANTS SONT ÉGALEMENT PROTÉGÉS


netgear-spc

Gérez facilement le temps passé en ligne et sécurisez la navigation de vos enfants. La solution de contrôle parental NETGEAR vous permet de promouvoir des habitudes saines liées à l'utilisation d'Internet et de responsabiliser vos enfants afin d'établir une relation de confiance.

EN SAVOIR PLUS

EASY SETUP



  • Download the Orbi app
    and follow instructions.
  • Connect Orbi Router to
    your modem and power.
  • Place and power Orbi Satellite
    in another part of your home.

TAP.
MANAGE.
CONTROL.



Orbi App


Just tap to manage your
network, set up guest WiFi
access, monitor device and
data usage run speed tests,
and more.

App_Store_Badge google-play-badge

Technical Specifications

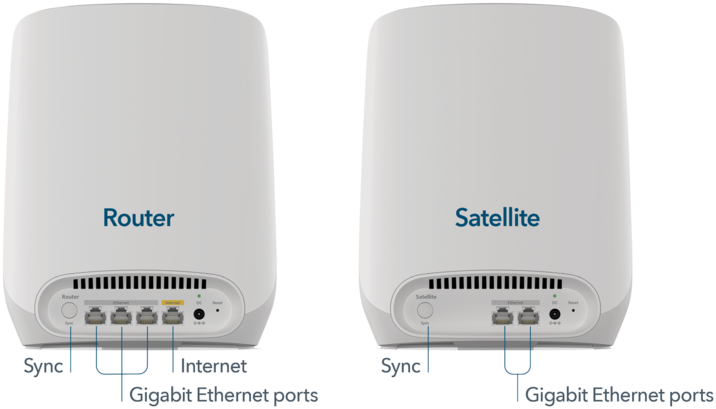

RBK762 Tech Specs Connection Diagram
  • Dimensions: 8.3 x 6.6 x 2.5in each
  • Weight: 1.6lb each
  • WiFi Coverage : 10,000 sq. ft.
  • Antennas : Router & Satellites (each)
  • Six (6) high performance internal antennas with high-powered amplifiers
  • Beamforming : Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands MU-MIMO capable for simultaneous data streaming to multiple devices
  • Processor : Powerful Dual-Core 1Ghz processor
  • AX5400 Tri-Band WiFi : Orbi AX5400 Router & AX5400 Satellites (600 + 2400 + 2400Mbps)† Simultaneous Tri-band WiFi
  • - Radio 1: IEEE® 802.11b/g/n/ax 2.4GHz—1024QAM support
  • - Radio 2: IEEE® 802.11a/n/ac/ax 5GHz—1024QAM support
  • - Radio 3: IEEE® 802.11a/n/ac/ax 5GHz—1024QAM support
  • Router Ports : - One (1) 1 Gigabit Ethernet WAN port
  • - Three (3) 1 Gigabit Ethernet LAN ports
  • Satellite Ports (each) : - Two (2) 1 Gigabit Ethernet LAN ports
  • Memory : Router: 4GB eMMC NAND Flash and 1GB RAM
  • Security : Advanced cyber threat protection for your home network and connected devices, with comprehensive anti-virus & data theft protection for your PC, Mac®, and mobile devices with NETGEAR Armor™. Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK). Guest WiFi Network is easy to setup separate & secure Internet access for guests
  • NETGEAR Smart Parental Controls™ : Easily manage your kids’ time online across their connected devices. Learn more at www.netgear.com/spc
  • Works with Amazon Alexa and the Google Assistant
  • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
  • WARRANTY
  • Find troubleshooting tips to diagnose product issues in our knowledge base
  • SUPPORT
  • Extend your warranty & technical support within 90 days of product purchase [US only].
  • GET PROSUPPORT
  • One (1) Orbi Router (RBR760)
  • Three (3) Orbi Satellites (RBS760)
  • One (1) 2m Ethernet cable
  • Four (4) Power adapters
  • Quick start guide

Compare Similar Products

small_orbiv2

RBK763
 Main_RBK863SB

RBK863SB
 nbke963-wiredconnection-7a

RBKE963​B

Price

Price

Price

Price

WiFi 6 / 6E

WiFi 6 / 6E

WiFi 6

WiFi 6 / 6E

WiFi 6

WiFi 6 / 6E

WiFi 6E​

WiFi Bands

WiFi Bands

Tri-Band

WiFi Bands

Tri-Band

WiFi Bands

Quad-Band

Max WiFi Speed

Max WiFi Speed

5.4Gbps

Max WiFi Speed

6 Gbps​

Max WiFi Speed

10.8 Gbps​

Coverage

Coverage

7,500 sq. ft.

Coverage

8,000 sq. ft.

Coverage

9,000 sq ft​

# of Devices

# of Devices

75

# of Devices

100

# of Devices

200

Internet Port Speed

Internet Port Speed

up to 5.4Gbps

Internet Port Speed

up to 10 Gig

Internet Port Speed

up to 10 Gig

Dedicated WiFi Backhaul

Dedicated WiFi Backhaul

Dedicated 5GHz 2x2 (160MHz)

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4 (80MHz)​

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4 (80MHz)

Fronthaul WiFi

Fronthaul WiFi

5GHz: 2x2 (160MHz); ​ 2.4GHz: 2x2​

Fronthaul WiFi

5GHz: 4x4 (80MHz); ​ 2.4GHz: 4x4

Fronthaul WiFi

6GHz: 4x4 (160MHz),​ 5GHz: 4x4 (80MHz), ​ 2.4GHz: 4x4​

Total Wired Ethernet Ports (Router)

Total Wired Ethernet Ports (Router)

One (1) 1Gbps Gigabit Ethernet WAN port , Three (3) Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Router)

One (1) 10Gbps Multi-Gigabit Ethernet WAN port, Four (4) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Router)

One (1) 10Gbps Multi-Gigabit Ethernet WAN port, One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Total Wired Ethernet Ports (Each Satellite)

Three (3) Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Four (4) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports

Footnotes:

This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller. www.netgear.com/warranty

*90-day complimentary technical support following purchase from a NETGEAR authorized reseller.

† Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 5.4Gbps wireless speeds achieved when connecting to other 802.11ax 5.4Gbps devices.

NETGEAR Armor™ is free during the trial period. A yearly subscription, after the trial period, protects your connected devices. Visit www.netgear.com/armor

NETGEAR Smart Parental Controls™ fees apply for a Premium Plan. Visit www.netgear.com/spc for more information.
